S_BOX = [ 0x63, 0x7C, 0x77, 0x7B, 0xF2, 0x6B, 0x6F, 0xC5, 0x30, 0x01, 0x67, 0x2B, 0xFE, 0xD7, 0xAB, 0x76, 0xCA, 0x82, 0xC9, 0x7D, 0xFA, 0x59, 0x47, 0xF0, 0xAD, 0xD4, 0xA2, 0xAF, 0x9C, 0xA4, 0x72, 0xC0, 0xB7, 0xFD, 0x93, 0x26, 0x36, 0x3F, 0xF7, 0xCC, 0x34, 0xA5, 0xE5, 0xF1, 0x71, 0xD8, 0x31, 0x15, 0x04, 0xC7, 0x23, 0xC3, 0x18, 0x96, 0x05, 0x9A, 0x07, 0x12, 0x80, 0xE2, 0xEB, 0x27, 0xB2, 0x75, 0x09, 0x83, 0x2C, 0x1A, 0x1B, 0x6E, 0x5A, 0xA0, 0x52, 0x3B, 0xD6, 0xB3, 0x29, 0xE3, 0x2F, 0x84, 0x53, 0xD1, 0x00, 0xED, 0x20, 0xFC, 0xB1, 0x5B, 0x6A, 0xCB, 0xBE, 0x39, 0x4A, 0x4C, 0x58, 0xCF, 0xD0, 0xEF, 0xAA, 0xFB, 0x43, 0x4D, 0x33, 0x85, 0x45, 0xF9, 0x02, 0x7F, 0x50, 0x3C, 0x9F, 0xA8, 0x51, 0xA3, 0x40, 0x8F, 0x92, 0x9D, 0x38, 0xF5, 0xBC, 0xB6, 0xDA, 0x21, 0x10, 0xFF, 0xF3, 0xD2, 0xCD, 0x0C, 0x13, 0xEC, 0x5F, 0x97, 0x44, 0x17, 0xC4, 0xA7, 0x7E, 0x3D, 0x64, 0x5D, 0x19, 0x73, 0x60, 0x81, 0x4F, 0xDC, 0x22, 0x2A, 0x90, 0x88, 0x46, 0xEE, 0xB8, 0x14, 0xDE, 0x5E, 0x0B, 0xDB, 0xE0, 0x32, 0x3A, 0x0A, 0x49, 0x06, 0x24, 0x5C, 0xC2, 0xD3, 0xAC, 0x62, 0x91, 0x95, 0xE4, 0x79, 0xE7, 0xC8, 0x37, 0x6D, 0x8D, 0xD5, 0x4E, 0xA9, 0x6C, 0x56, 0xF4, 0xEA, 0x65, 0x7A, 0xAE, 0x08, 0xBA, 0x78, 0x25, 0x2E, 0x1C, 0xA6, 0xB4, 0xC6, 0xE8, 0xDD, 0x74, 0x1F, 0x4B, 0xBD, 0x8B, 0x8A, 0x70, 0x3E, 0xB5, 0x66, 0x48, 0x03, 0xF6, 0x0E, 0x61, 0x35, 0x57, 0xB9, 0x86, 0xC1, 0x1D, 0x9E, 0xE1, 0xF8, 0x98, 0x11, 0x69, 0xD9, 0x8E, 0x94, 0x9B, 0x1E, 0x87, 0xE9, 0xCE, 0x55, 0x28, 0xDF, 0x8C, 0xA1, 0x89, 0x0D, 0xBF, 0xE6, 0x42, 0x68, 0x41, 0x99, 0x2D, 0x0F, 0xB0, 0x54, 0xBB, 0x16 ]
INV_S_BOX = [ 0x52, 0x09, 0x6A, 0xD5, 0x30, 0x36, 0xA5, 0x38, 0xBF, 0x40, 0xA3, 0x9E, 0x81, 0xF3, 0xD7, 0xFB, 0x7C, 0xE3, 0x39, 0x82, 0x9B, 0x2F, 0xFF, 0x87, 0x34, 0x8E, 0x43, 0x44, 0xC4, 0xDE, 0xE9, 0xCB, 0x54, 0x7B, 0x94, 0x32, 0xA6, 0xC2, 0x23, 0x3D, 0xEE, 0x4C, 0x95, 0x0B, 0x42, 0xFA, 0xC3, 0x4E, 0x08, 0x2E, 0xA1, 0x66, 0x28, 0xD9, 0x24, 0xB2, 0x76, 0x5B, 0xA2, 0x49, 0x6D, 0x8B, 0xD1, 0x25, 0x72, 0xF8, 0xF6, 0x64, 0x86, 0x68, 0x98, 0x16, 0xD4, 0xA4, 0x5C, 0xCC, 0x5D, 0x65, 0xB6, 0x92, 0x6C, 0x70, 0x48, 0x50, 0xFD, 0xED, 0xB9, 0xDA, 0x5E, 0x15, 0x46, 0x57, 0xA7, 0x8D, 0x9D, 0x84, 0x90, 0xD8, 0xAB, 0x00, 0x8C, 0xBC, 0xD3, 0x0A, 0xF7, 0xE4, 0x58, 0x05, 0xB8, 0xB3, 0x45, 0x06, 0xD0, 0x2C, 0x1E, 0x8F, 0xCA, 0x3F, 0x0F, 0x02, 0xC1, 0xAF, 0xBD, 0x03, 0x01, 0x13, 0x8A, 0x6B, 0x3A, 0x91, 0x11, 0x41, 0x4F, 0x67, 0xDC, 0xEA, 0x97, 0xF2, 0xCF, 0xCE, 0xF0, 0xB4, 0xE6, 0x73, 0x96, 0xAC, 0x74, 0x22, 0xE7, 0xAD, 0x35, 0x85, 0xE2, 0xF9, 0x37, 0xE8, 0x1C, 0x75, 0xDF, 0x6E, 0x47, 0xF1, 0x1A, 0x71, 0x1D, 0x29, 0xC5, 0x89, 0x6F, 0xB7, 0x62, 0x0E, 0xAA, 0x18, 0xBE, 0x1B, 0xFC, 0x56, 0x3E, 0x4B, 0xC6, 0xD2, 0x79, 0x20, 0x9A, 0xDB, 0xC0, 0xFE, 0x78, 0xCD, 0x5A, 0xF4, 0x1F, 0xDD, 0xA8, 0x33, 0x88, 0x07, 0xC7, 0x31, 0xB1, 0x12, 0x10, 0x59, 0x27, 0x80, 0xEC, 0x5F, 0x60, 0x51, 0x7F, 0xA9, 0x19, 0xB5, 0x4A, 0x0D, 0x2D, 0xE5, 0x7A, 0x9F, 0x93, 0xC9, 0x9C, 0xEF, 0xA0, 0xE0, 0x3B, 0x4D, 0xAE, 0x2A, 0xF5, 0xB0, 0xC8, 0xEB, 0xBB, 0x3C, 0x83, 0x53, 0x99, 0x61, 0x17, 0x2B, 0x04, 0x7E, 0xBA, 0x77, 0xD6, 0x26, 0xE1, 0x69, 0x14, 0x63, 0x55, 0x21, 0x0C, 0x7D ]
RCON = [ 0x8d, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40, 0x80, 0x1b, 0x36, 0x6c, 0xd8, 0xab, 0x4d, 0x9a, 0x2f, 0x5e, 0xbc, 0x63, 0xc6, 0x97, 0x35, 0x6a, 0xd4, 0xb3, 0x7d, 0xfa, 0xef, 0xc5, 0x91, 0x39 ]
def gmul_2(byte): if byte & 0x80: return (byte << 1) ^ 0x1B else: return byte << 1
def gmul_3(byte): return gmul_2(byte) ^ byte
def gmul_e(byte): return gmul_2(gmul_2(gmul_2(byte))) ^ gmul_2(gmul_2(byte)) ^ gmul_2(byte) def gmul_b(byte): return gmul_2(gmul_2(gmul_2(byte))) ^ gmul_2(byte) ^ byte def gmul_d(byte): return gmul_2(gmul_2(gmul_2(byte))) ^ gmul_2(gmul_2(byte)) ^ byte def gmul_9(byte): return gmul_2(gmul_2(gmul_2(byte))) ^ byte
def key_expansion(key): Nk = 4 Nr = 10 Nb = 4
key_words = [int.from_bytes(key[i:i+4], 'big') for i in range(0, len(key), 4)] expanded_key = list(key_words)
for i in range(Nk, Nb * (Nr + 1)): temp = expanded_key[i-1] if i % Nk == 0: temp = ((temp << 8) & 0xFFFFFFFF) | (temp >> 24) temp = (S_BOX[(temp >> 24) & 0xFF] << 24) | \ (S_BOX[(temp >> 16) & 0xFF] << 16) | \ (S_BOX[(temp >> 8) & 0xFF] << 8) | \ (S_BOX[temp & 0xFF]) temp ^= (RCON[i // Nk] << 24) expanded_key.append(expanded_key[i - Nk] ^ temp) round_keys = [] for i in range(Nr + 1): round_key_bytes = bytearray() for j in range(Nb): word = expanded_key[i * Nb + j] round_key_bytes.extend(word.to_bytes(4, 'big')) round_keys.append(round_key_bytes) return round_keys
def add_round_key(state, round_key): for i in range(16): state[i] ^= round_key[i]
def sub_bytes(state): for i in range(16): state[i] = S_BOX[state[i]]
def inv_sub_bytes(state): for i in range(16): state[i] = INV_S_BOX[state[i]]
def shift_rows(state): new_state = bytearray(16) new_state[0] = state[0] new_state[4] = state[4] new_state[8] = state[8] new_state[12] = state[12]
new_state[1] = state[5] new_state[5] = state[9] new_state[9] = state[13] new_state[13] = state[1]
new_state[2] = state[10] new_state[6] = state[14] new_state[10] = state[2] new_state[14] = state[6]
new_state[3] = state[15] new_state[7] = state[3] new_state[11] = state[7] new_state[15] = state[11] state[:] = new_state[:]
def inv_shift_rows(state): new_state = bytearray(16) new_state[0] = state[0] new_state[4] = state[4] new_state[8] = state[8] new_state[12] = state[12]
new_state[1] = state[13] new_state[5] = state[1] new_state[9] = state[5] new_state[13] = state[9]
new_state[2] = state[10] new_state[6] = state[14] new_state[10] = state[2] new_state[14] = state[6]
new_state[3] = state[7] new_state[7] = state[11] new_state[11] = state[15] new_state[15] = state[3] state[:] = new_state[:]

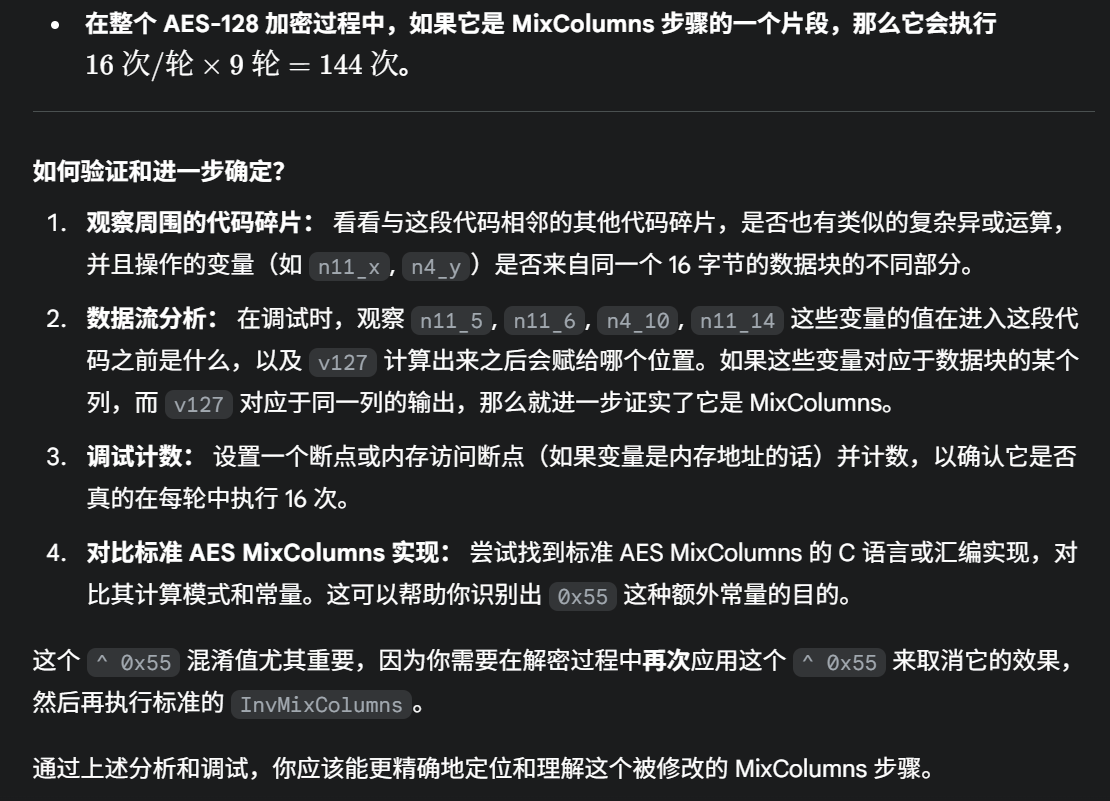

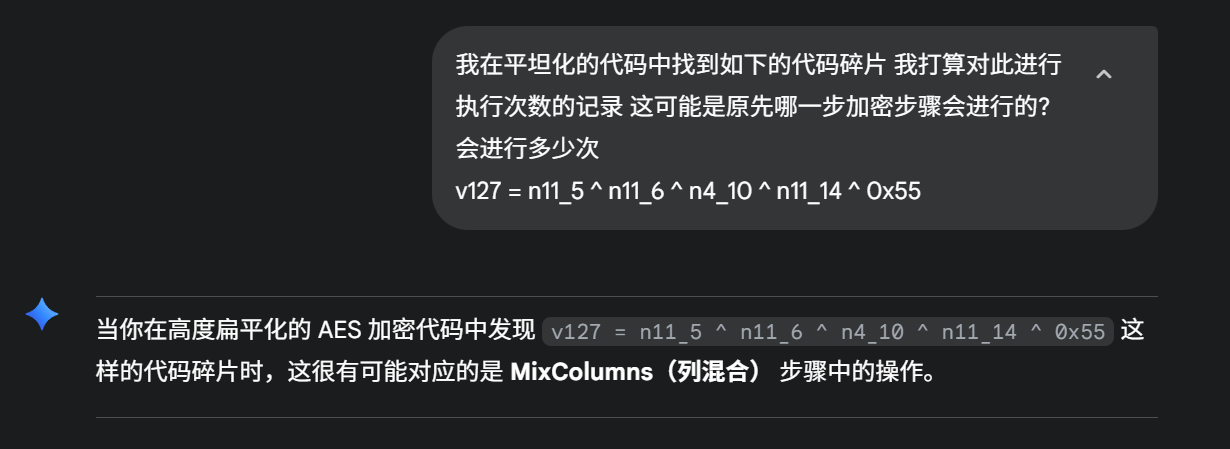

def mix_columns(state): new_state = bytearray(16) for i in range(4): s0 = state[i * 4 + 0] s1 = state[i * 4 + 1] s2 = state[i * 4 + 2] s3 = state[i * 4 + 3]
new_state[i * 4 + 0] = (gmul_2(s0) ^ gmul_3(s1) ^ s2 ^ s3) & 0xFF new_state[i * 4 + 1] = (s0 ^ gmul_2(s1) ^ gmul_3(s2) ^ s3) & 0xFF new_state[i * 4 + 2] = (s0 ^ s1 ^ gmul_2(s2) ^ gmul_3(s3)) & 0xFF new_state[i * 4 + 3] = (gmul_3(s0) ^ s1 ^ s2 ^ gmul_2(s3)) & 0xFF
new_state[i * 4 + 0] ^= 0x55 new_state[i * 4 + 1] ^= 0x55 new_state[i * 4 + 2] ^= 0x55 new_state[i * 4 + 3] ^= 0x55
state[:] = new_state[:]
def inv_mix_columns(state): new_state = bytearray(16) for i in range(4): s0 = (state[i * 4 + 0] ^ 0x55) & 0xFF s1 = (state[i * 4 + 1] ^ 0x55) & 0xFF s2 = (state[i * 4 + 2] ^ 0x55) & 0xFF s3 = (state[i * 4 + 3] ^ 0x55) & 0xFF
new_state[i * 4 + 0] = (gmul_e(s0) ^ gmul_b(s1) ^ gmul_d(s2) ^ gmul_9(s3)) & 0xFF new_state[i * 4 + 1] = (gmul_9(s0) ^ gmul_e(s1) ^ gmul_b(s2) ^ gmul_d(s3)) & 0xFF new_state[i * 4 + 2] = (gmul_d(s0) ^ gmul_9(s1) ^ gmul_e(s2) ^ gmul_b(s3)) & 0xFF new_state[i * 4 + 3] = (gmul_b(s0) ^ gmul_d(s1) ^ gmul_9(s2) ^ gmul_e(s3)) & 0xFF
state[:] = new_state[:]
def aes_ecb_encrypt_modified(plaintext, key): if len(plaintext) != 16 or len(key) != 16: raise ValueError("Plaintext and key must be 16 bytes long for this AES-ECB implementation.")
state = bytearray(plaintext)
round_keys = key_expansion(key)
add_round_key(state, round_keys[0])
for i in range(1, 10): sub_bytes(state) shift_rows(state) mix_columns(state) add_round_key(state, round_keys[i])
sub_bytes(state) shift_rows(state) add_round_key(state, round_keys[10])
return bytes(state)
def aes_ecb_decrypt_modified(ciphertext, key): if len(ciphertext) != 16 or len(key) != 16: raise ValueError("Ciphertext and key must be 16 bytes long for this AES-ECB implementation.")
state = bytearray(ciphertext)
round_keys = key_expansion(key)
add_round_key(state, round_keys[10]) inv_shift_rows(state) inv_sub_bytes(state)
for i in range(9, 0, -1): add_round_key(state, round_keys[i]) inv_mix_columns(state) inv_shift_rows(state) inv_sub_bytes(state)
add_round_key(state, round_keys[0])
return bytes(state)
plaintext_hex = "c20b9ab583f9cb629880a7648b15904f"
key_hex = "24 25 8A 5B 6A 20 62 5D D2 71 64 32 FD E7 5E C4"
plaintext = bytes.fromhex(plaintext_hex) key = bytes.fromhex(key_hex) ciphertext = b''
print(f"Plaintext: {plaintext.hex().upper()}") print(f"Key: {key.hex().upper()}")
try: ciphertext = aes_ecb_encrypt_modified(plaintext, key) print(f"Ciphertext: {ciphertext.hex().upper()}") except ValueError as e: print(f"Error: {e}")
enc = bytes.fromhex('22 EB B5 40 91 62 9C F7 E2 13 FF A8 8C 54 D9 80')
key = bytes.fromhex(key_hex) decrypted = aes_ecb_decrypt_modified(enc, key) print(f"Decrypted: {decrypted.hex().upper()}")
|
